MT9V034 Global-Shutter-Kameramodul
产品信息
CHF67
产品描述
The Global Shutter Camera Module allows your OpenMV Cam to capture high quality grayscale images not affected by motion blur.

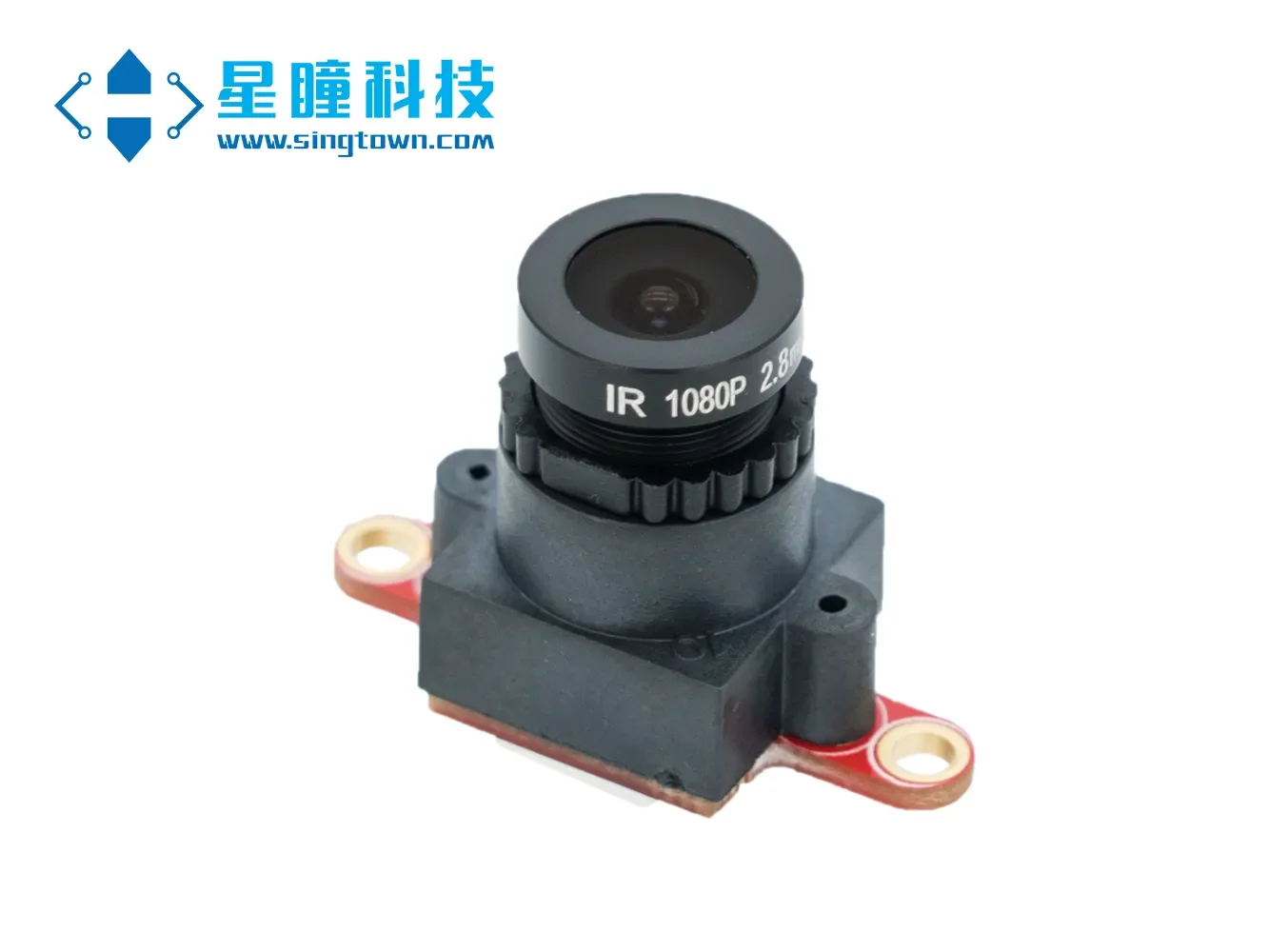

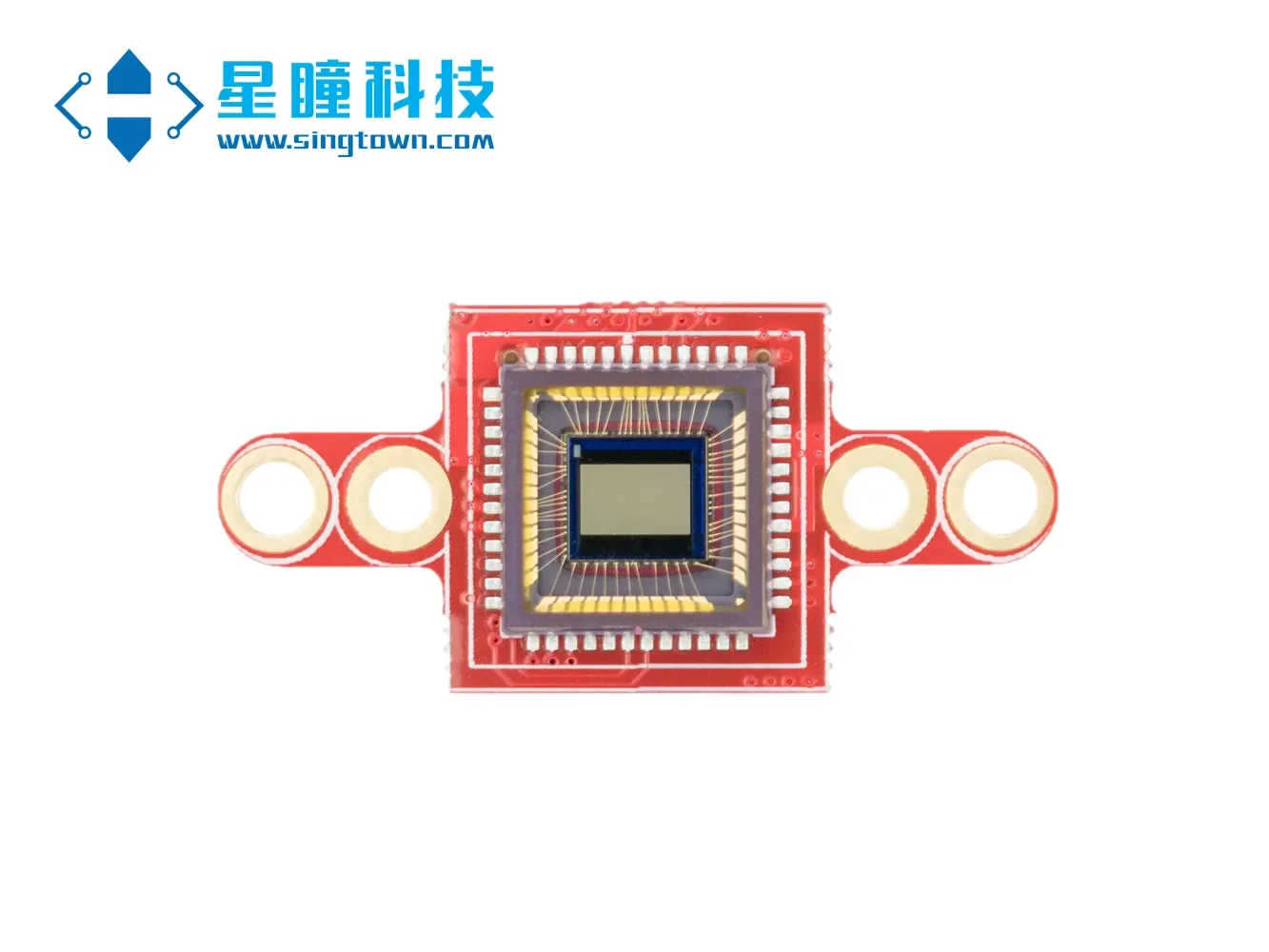

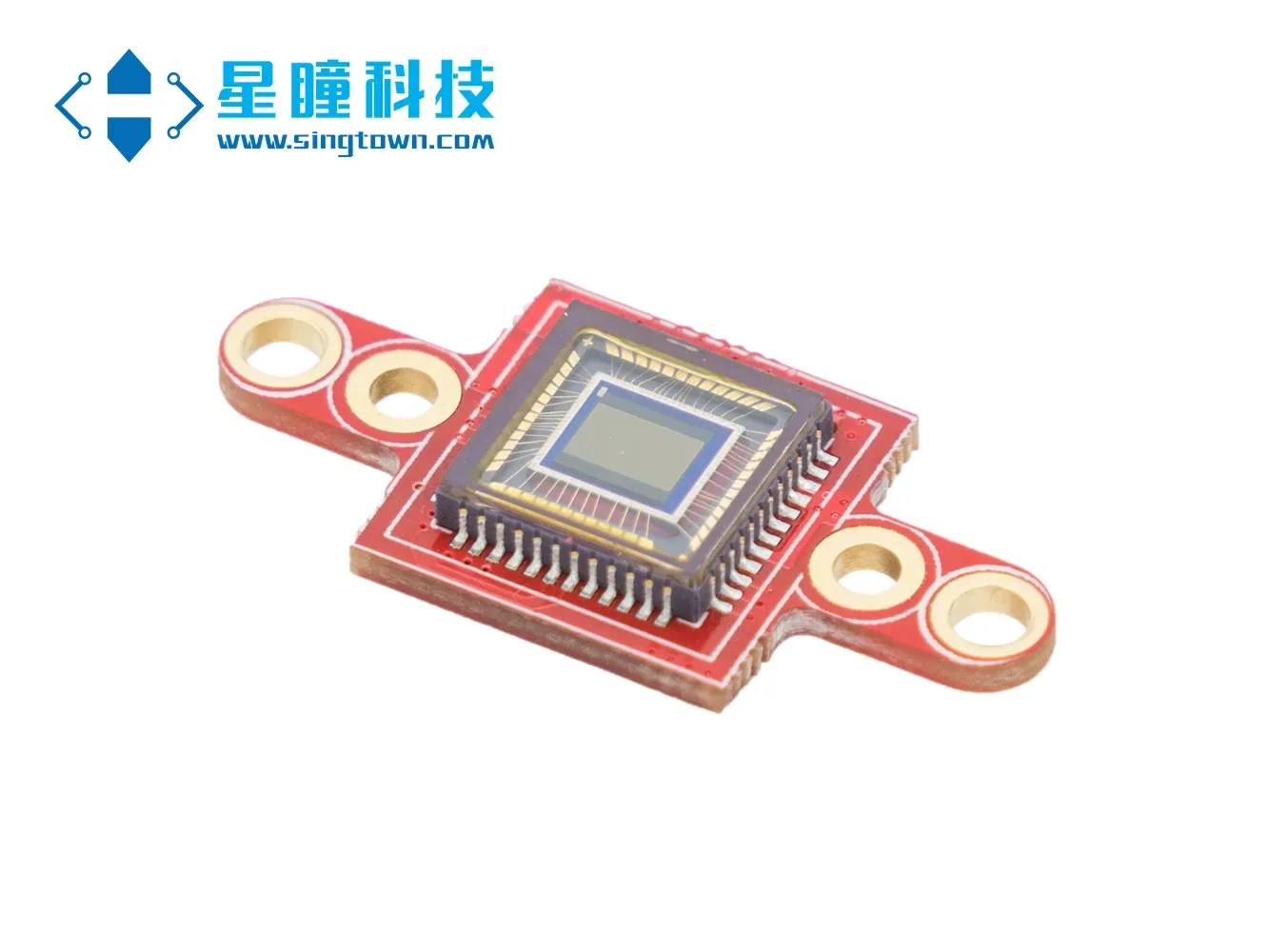

The Global Shutter Camera Module allows your OpenMV Cam to capture high quality grayscale images not affected by motion blur. The module features the MT9V034 Global Shutter Camera Module capable of tacking snapshot pictures on demand along with being able to run 80 FPS in QVGA mode, 200 FPS in QQVGA mode, and 400 FPS in QQQVGA mode. The Global Shutter Camera Module is the ultimate sensor for machine vision enthusiasts who want to use their OpenMV Cam in professional products.
Applications
The global shutter camera is extremely useful for high FPS tracking applications and taking precision snapshots triggered by an external event. When running at a high FPS with low exposure the sensor allows you to capture very fast movement of illuminated objects. When in triggered mode you can easily take snapshots at the exact time an object is within the field of view.
- Schematic (pdf)：MT9V034.pdf
- Sensor Datasheet：MT9V034 (.pdf)
| Horizontal Resolution | 752 pixels (4.51mm) |
| Vertical Resolution | 480 pixels (2.88mm) |
| Optical Format | 1/3-inch |
| Pixel Size | 6um x 6um |
| Sensitivity @ 550nm | 4.8 V/Lux-sec |
| Dynamic Range | 55 dB |
| Lens Information | Focal Length: 2.8mm Aperture: F2.0 Format: 1/3″ HFOV = 70.8°, VFOV = 55.6° Mount: M12*0.5 IR Cut Filter (blocks infrared light): 650nm (removable) |
| Weight | 10g |
| Length | 35mm |
| Width | 25mm |
| Height | 28mm |
| Storage Temperature | -50°C to 150°C |
| Operating Temperature | -30°C to 70°C |
| Power Consumption - Normal Mode | 55.1mA @ 3.3V |
| Power Consumption - Shutdown Mode | 0.3µA @ 3.3V |
